Cwmiibili AD620 Microvolt Amplifier 3-12V DC 1000x Gain ±10V Output

Description

Product Overview

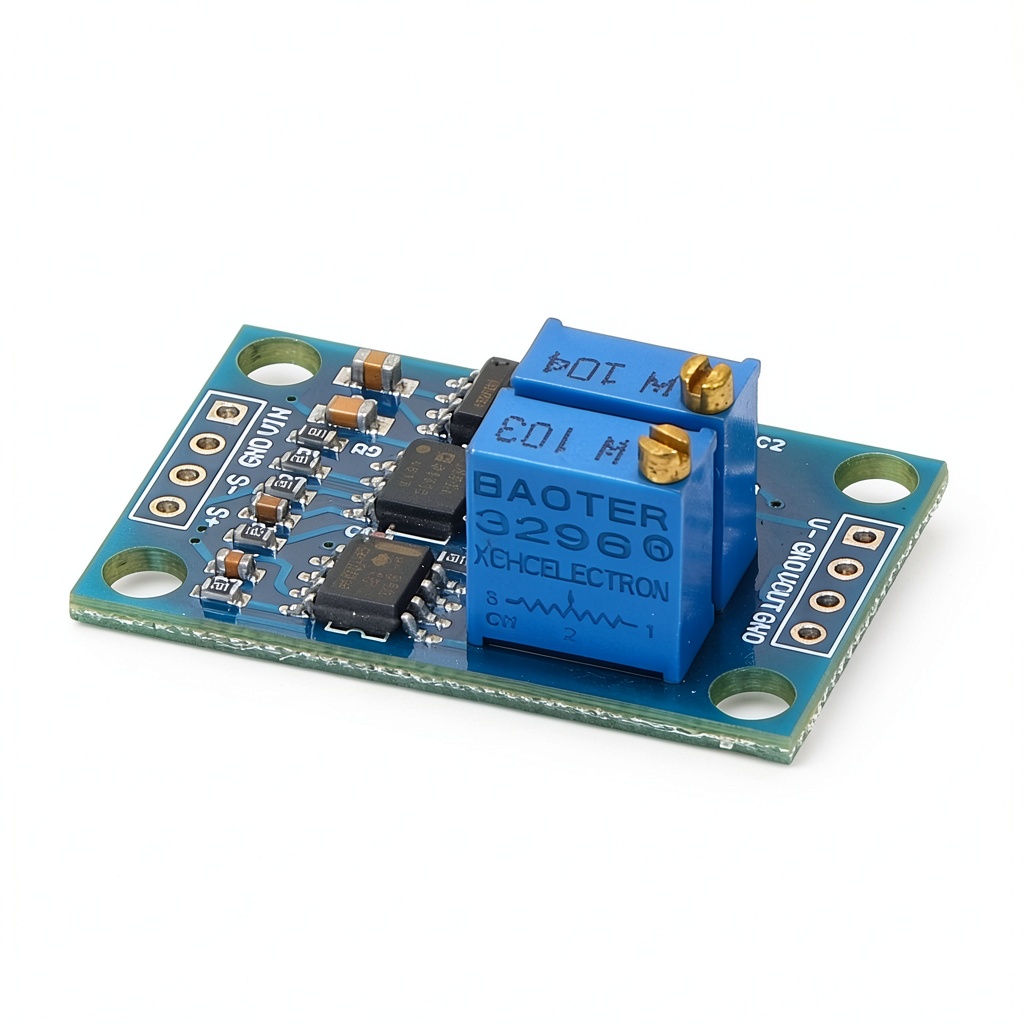

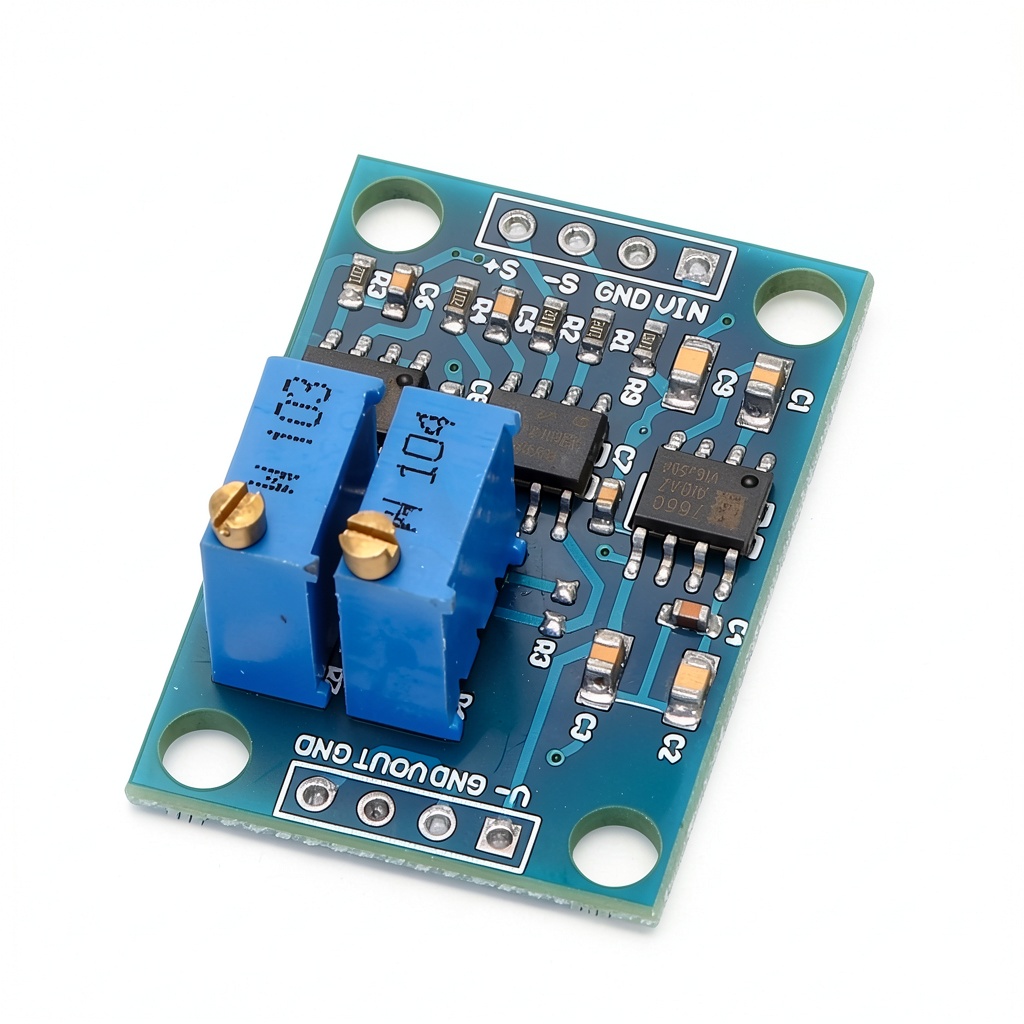

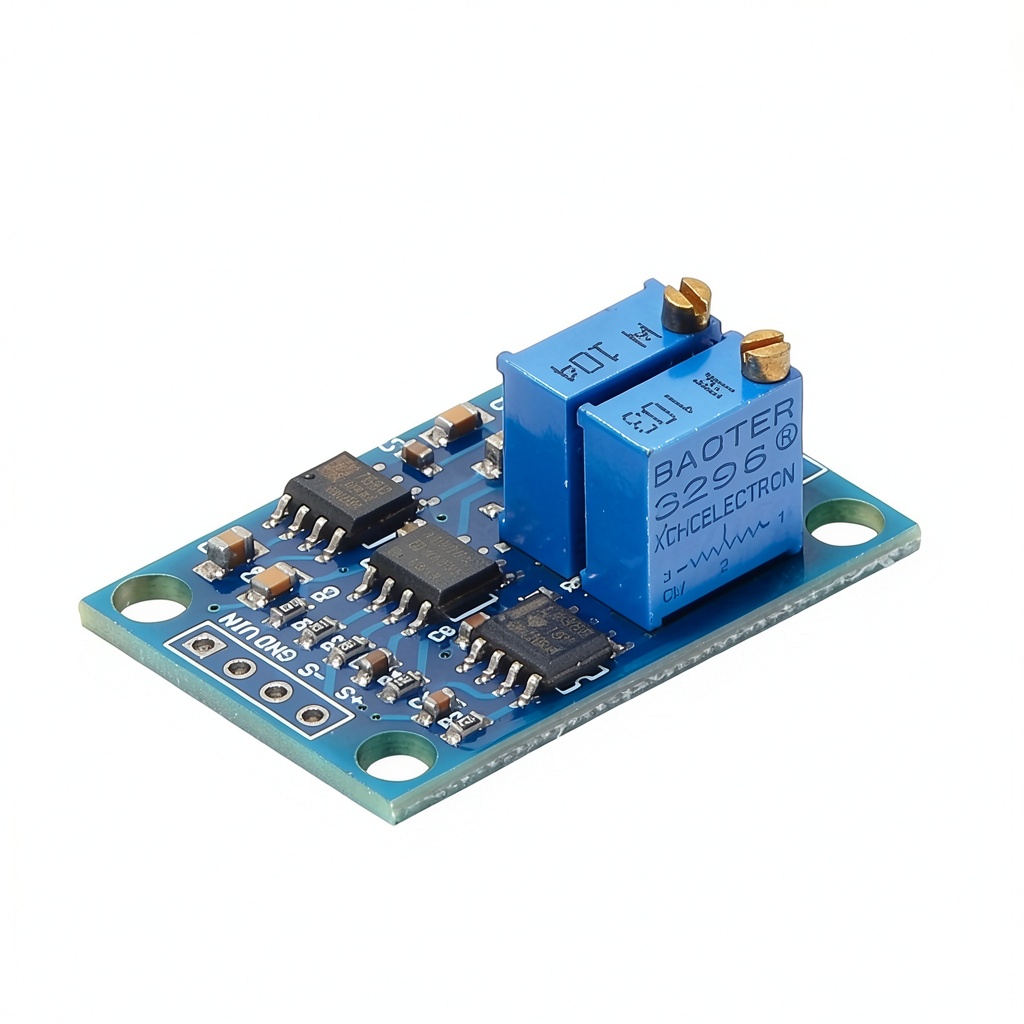

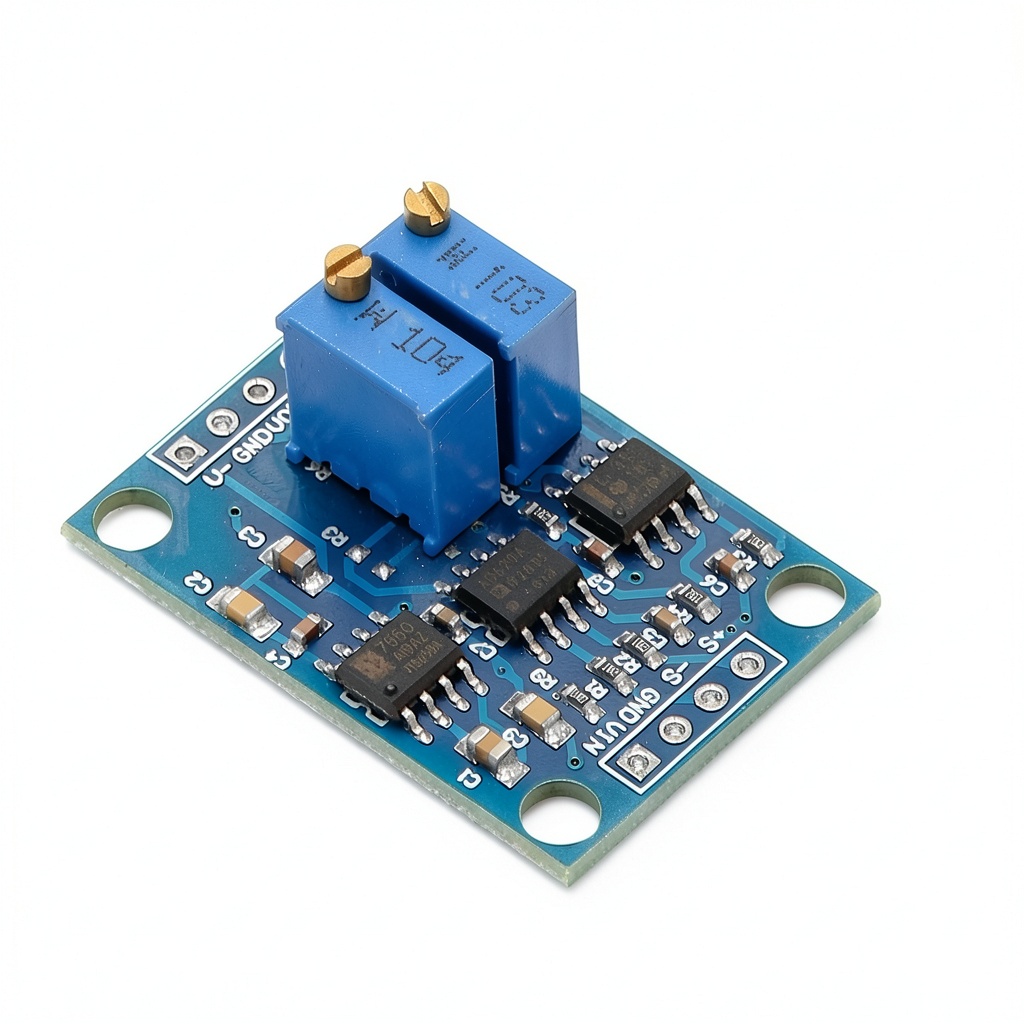

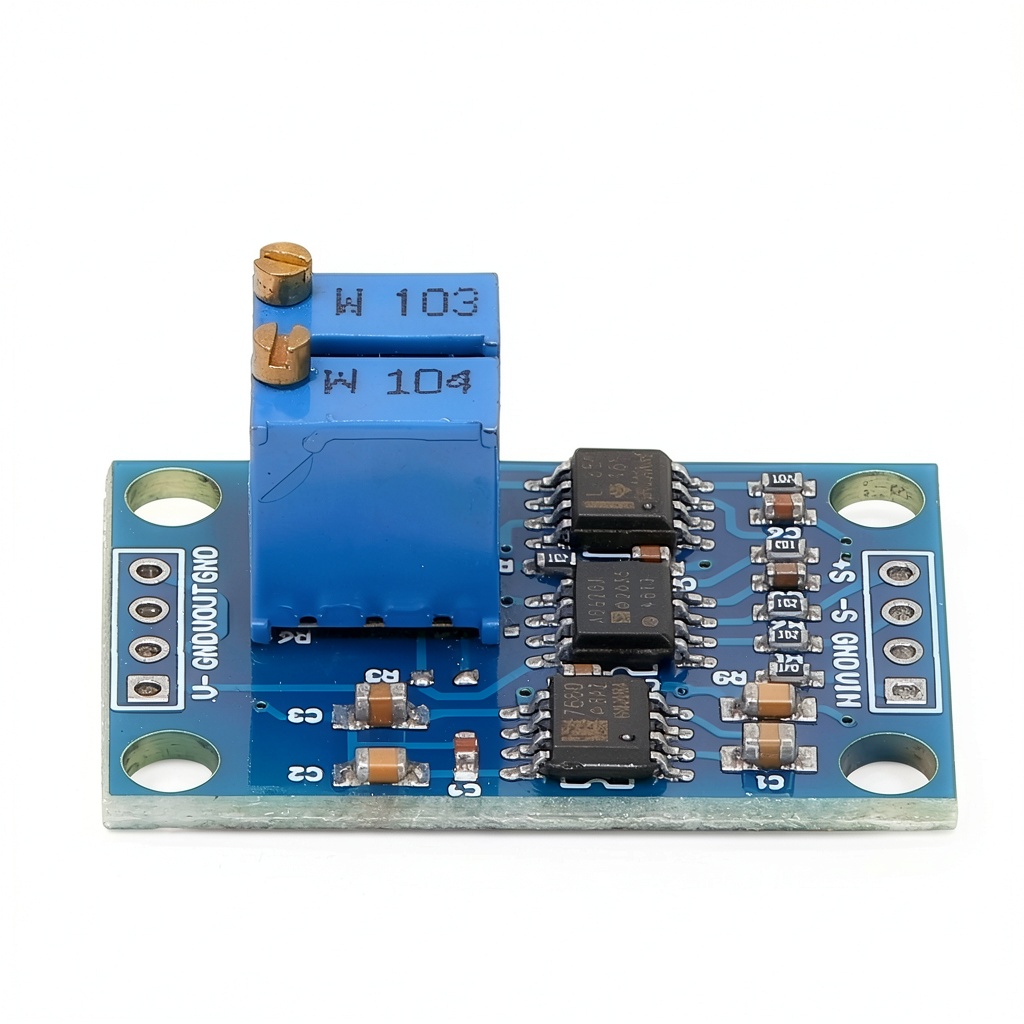

The Cwmiibili AD620 Microvolt Amplifier is engineered for high‑precision signal conditioning in demanding industrial and scientific environments. Operating from a flexible 3‑12V DC supply, the unit delivers a maximum output swing of ±10V, enabling it to drive a broad range of downstream circuitry. Central to its performance is the AD620 instrumentation amplifier core, paired with a 7660A charge‑pump chip that generates the required negative voltage rail, eliminating the need for external dual‑power supplies. Gain is set by an external potentiometer, providing a smooth, continuous adjustment from unity up to a thousand‑fold amplification, while a dedicated zero‑offset trim potentiometer eliminates drift and ensures accurate baseline positioning. The board’s layout emphasizes low noise and high linearity, with careful grounding and shielding to preserve signal integrity even at microvolt input levels. Robust through‑hole components and a durable FR‑4 substrate guarantee long‑term reliability, making the amplifier suitable for continuous operation in laboratory benches, field‑portable test rigs, and automated production test stations.

Usage

Designed for versatility, this amplifier excels in applications where minute voltage signals must be amplified without distortion. In biomedical research, it can boost sensor outputs from electrophysiological electrodes, providing clean, amplified waveforms for analysis. In industrial process control, the device interfaces with strain‑gauge transducers and thermocouples, delivering stable, high‑gain signals to data acquisition systems. Its wide input voltage tolerance allows seamless integration with battery‑powered portable instruments, while the built‑in negative voltage generation supports dual‑supply operational amplifiers used in precision analog front‑ends. Engineers often employ the AD620 module in prototype development, using the adjustable gain to fine‑tune circuit response before committing to custom ASIC designs. The compact footprint and straightforward wiring enable rapid deployment on breadboards or within enclosed test enclosures, reducing development time and simplifying troubleshooting.

Why Choose Us

Choosing the Cwmiibili AD620 module means selecting a product backed by rigorous quality assurance processes. Each board undergoes a multi‑stage inspection, including automated optical inspection, functional testing at multiple gain settings, and thermal stress verification to confirm performance across the full operating temperature range. The manufacturer, Cwmiibili, leverages over a decade of experience in analog signal processing, ensuring that component selection, layout, and firmware (where applicable) meet industry standards for reliability and electromagnetic compatibility. In addition to the hardware, customers receive comprehensive documentation, including detailed schematics, gain calculation worksheets, and recommended layout guidelines for optimal noise performance. Should any issues arise, a dedicated technical support team provides prompt assistance, offering troubleshooting advice, firmware updates, and, when necessary, replacement units under a one‑year warranty. This commitment to service and product excellence distinguishes the AD620 module from generic, unbranded alternatives.

Key Features

• Adjustable gain from 1 to 1000× using a precision potentiometer, allowing fine control for diverse signal levels.
• Zero‑offset trim potentiometer eliminates baseline drift, ensuring accurate measurements over long periods.
• Integrated 7660A charge‑pump provides a stable negative voltage rail, simplifying dual‑supply designs.
• Wide input voltage range of 3‑12V DC and output capability of ±10V, compatible with many sensor and instrumentation setups.
• Comprehensive after‑sales support, including technical assistance, documentation, and a one‑year warranty for peace of mind.

FAQ

What is the recommended method for setting the gain on the AD620 module?

To set the gain, connect the external gain‑setting resistor or potentiometer between the designated pins as shown in the schematic. Adjust the potentiometer while monitoring the output with an oscilloscope or multimeter until the desired amplification factor is achieved. For precise gain values, use the formula Gain = 1 + (49.4kΩ / R_G), where R_G is the resistance of the gain‑setting element.

Can the amplifier operate with a single‑supply voltage, or is a dual‑supply required?

The module is designed to run from a single 3‑12V DC supply, thanks to the built‑in 7660A charge‑pump that creates the necessary negative rail internally. This eliminates the need for an external dual‑supply source, simplifying wiring and reducing overall system cost while still providing the full ±10V output range.

How does the zero‑drift adjustment improve measurement accuracy?

Zero‑drift adjustment compensates for any inherent offset voltage that may appear at the amplifier’s output when the input is at ground potential. By fine‑tuning the zero‑offset potentiometer, users can nullify this offset, preventing systematic errors and ensuring that the amplified signal accurately reflects the true input voltage, especially important in low‑level microvolt applications.

Is the AD620 module suitable for high‑frequency signal amplification?

While the AD620 excels at low‑frequency and DC signal amplification with excellent linearity and low noise, its bandwidth is limited compared to high‑speed op‑amps. For applications requiring frequencies above a few hundred kilohertz, a different amplifier architecture may be more appropriate. However, for most sensor, instrumentation, and control tasks that operate below 100 kHz, the AD620 provides ample performance.

What warranty and support options are available for this product?

The AD620 module comes with a one‑year limited warranty covering defects in materials and workmanship. Customers can contact Cwmiibili’s technical support via email or phone for assistance with installation, troubleshooting, or firmware updates. Replacement units are provided on a RMA basis, and detailed documentation is available for download from the company’s website.
