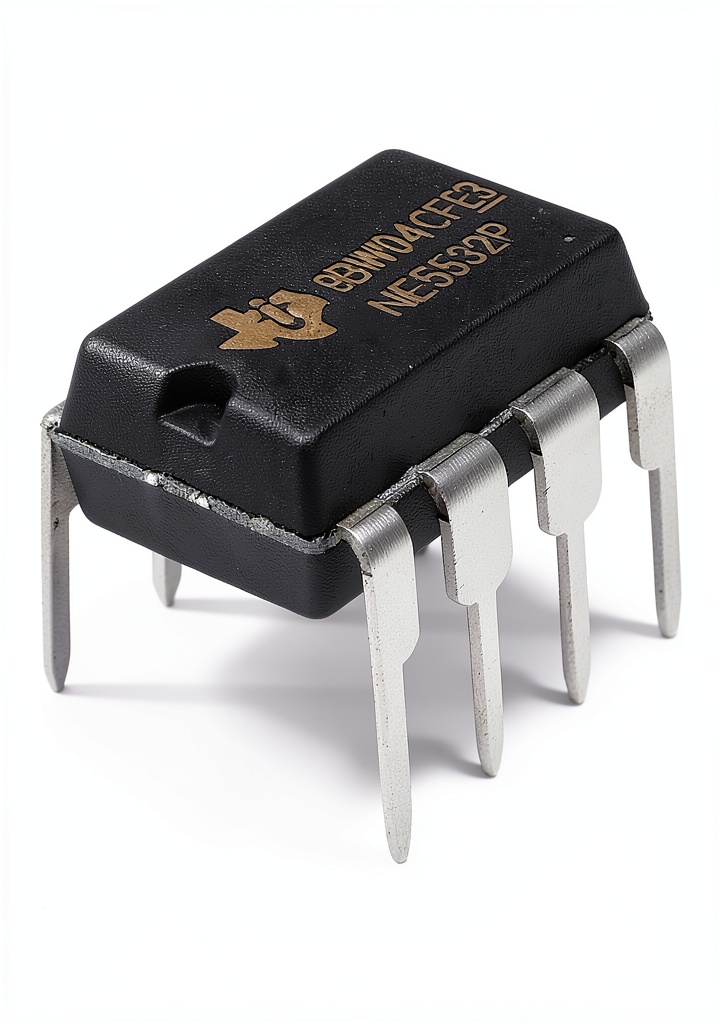

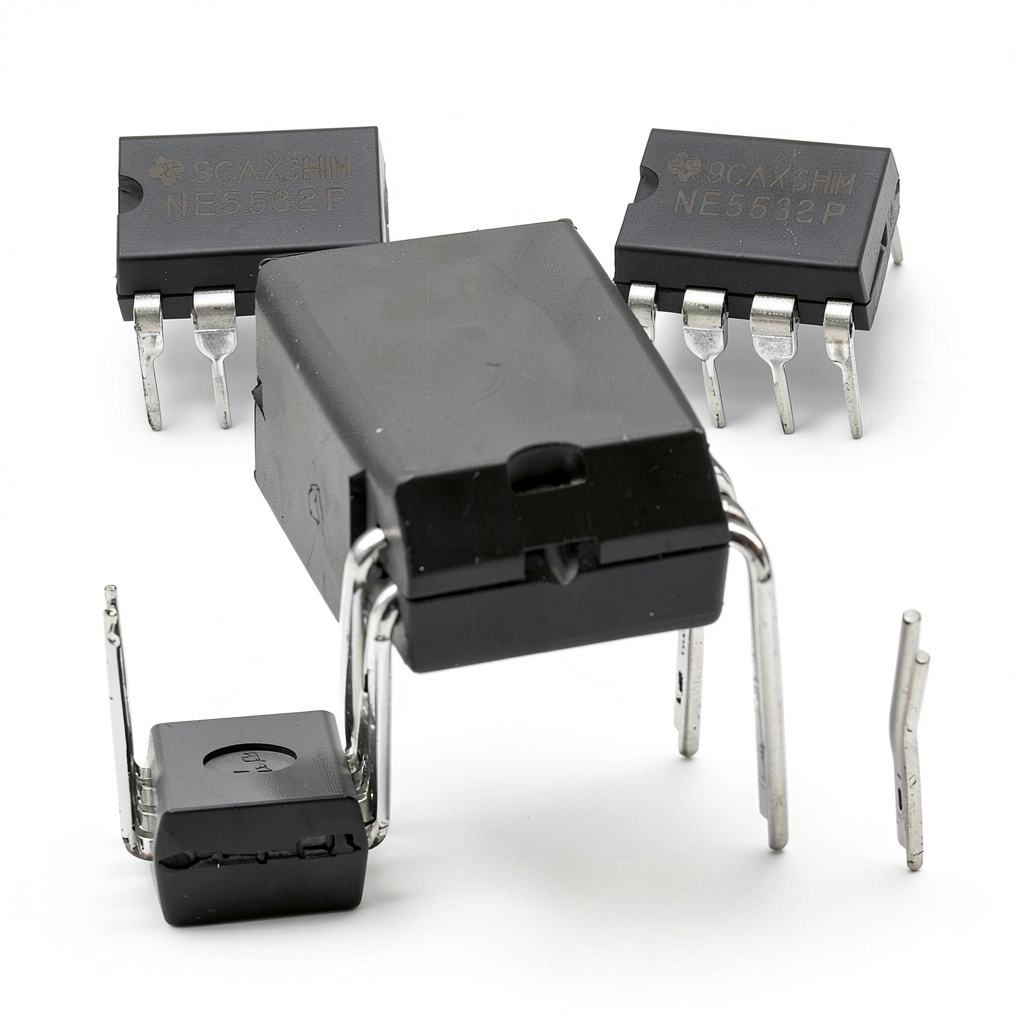

NE5532P TI Operational Amplifier 10MHz Bandwidth 100dB CMRR 8-Pin DIP

Description

Product Overview

The NE5532P from Texas Instruments is a high‑performance dual operational amplifier designed for precision audio, instrumentation, and general‑purpose signal conditioning. Built on a proven silicon process, this device delivers a typical unity‑gain bandwidth of 10 MHz, allowing fast signal response and accurate amplification across a wide frequency range. Its common‑mode rejection ratio of 100 dB ensures that unwanted noise and interference are minimized, providing clean and transparent audio reproduction even in demanding environments. The amplifier features a high DC voltage gain of 100 V/mV, which translates into excellent open‑loop performance and low distortion. Packaged in an 8‑pin DIP with machined contact pins, the NE5532P is engineered for breadboard‑friendly prototyping, making it easy to insert and remove without soldering. The robust lead frame and precision‑machined pins guarantee reliable electrical contact, reducing the risk of intermittent connections during testing and development. In addition to its electrical specifications, the device benefits from TI’s extensive quality control processes, ensuring consistent performance from batch to batch. Whether you are designing a high‑fidelity audio preamplifier, a low‑noise sensor interface, or a mixed‑signal data acquisition system, the NE5532P offers the combination of speed, accuracy, and ease of use that modern engineers require. Its low input bias current and low offset voltage further enhance its suitability for precision applications, while the dual‑channel configuration saves board space and simplifies circuit design. The component’s thermal characteristics are optimized for typical ambient conditions, and it can operate comfortably within standard industrial temperature ranges, making it a reliable choice for both laboratory prototypes and field‑deployed equipment.

Usage

Designed with versatility in mind, the NE5532P excels in a variety of real‑world scenarios. Audio engineers often employ this amplifier in headphone drivers, line‑level buffers, and active crossover networks, where its low noise floor and high CMRR preserve signal integrity. In instrumentation, the device serves as a front‑end amplifier for strain‑gauge bridges, thermocouple conditioners, and precision voltage references, delivering accurate amplification of low‑level signals. Its fast slew rate and wide bandwidth make it suitable for active filters, oscillators, and waveform generators used in research laboratories and educational settings. The DIP form factor, combined with machined contact pins, allows hobbyists and professionals alike to quickly prototype circuits on standard solderless breadboards, reducing development time and cost. Moreover, the NE5532P can be integrated into mixed‑signal systems that require both analog and digital interfacing, such as data acquisition modules and microcontroller‑based sensor platforms. Its stability in unity‑gain configurations ensures reliable operation without the need for external compensation components, simplifying design and reducing part count. The amplifier also performs well in automotive and industrial control applications where robust operation under varying temperature and voltage conditions is essential. By providing consistent performance across a broad spectrum of uses, the NE5532P helps engineers focus on system functionality rather than component limitations.

Why Choose Us

When selecting an operational amplifier, reliability, performance, and support are paramount. Texas Instruments, the manufacturer of the NE5532P, has a long history of delivering semiconductor solutions that meet stringent industry standards. Each unit undergoes rigorous testing to verify its electrical characteristics, ensuring that the specifications listed in the datasheet are met or exceeded. Our distribution network guarantees authentic, genuine parts, eliminating the risk of counterfeit components that can compromise system reliability. In addition to the high‑quality silicon, the NE5532P benefits from a meticulously engineered DIP package with precision‑machined pins, providing superior mechanical strength and consistent solderability. We also offer comprehensive technical documentation, including application notes, reference designs, and simulation models, to accelerate your development process. Should you encounter any challenges, our dedicated engineering support team is available to provide guidance on circuit design, layout considerations, and troubleshooting. By choosing the NE5532P, you gain access to a component that combines proven performance with the backing of a world‑class manufacturer, ensuring long‑term availability and peace of mind for your projects.

Key Features

• Fast 10 MHz bandwidth delivers quick response for high‑frequency signals.
• Exceptional 100 dB CMRR reduces noise, ensuring clean audio and precise measurements.
• Low offset and bias currents provide accurate amplification of low‑level inputs.

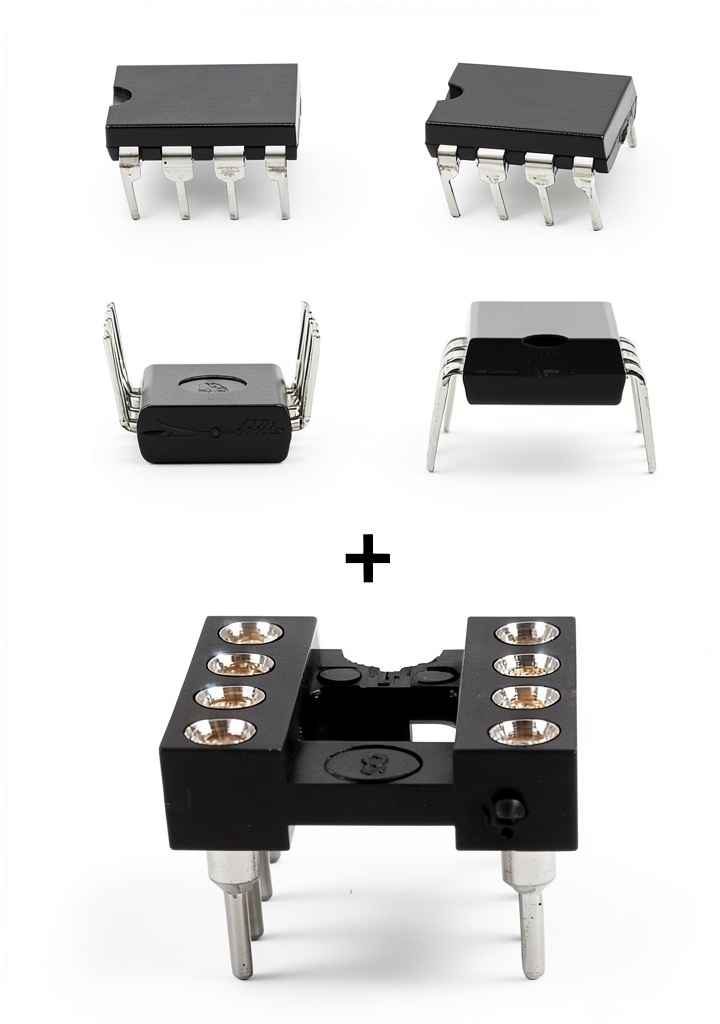

• Durable 8‑pin DIP with machined contact pins makes prototyping easy and reliable.
• Comprehensive TI technical support and documentation for seamless integration.

FAQ

What is the typical unity‑gain bandwidth of the NE5532P?

The NE5532P offers a typical unity‑gain bandwidth of 10 MHz, which allows it to handle fast signal changes and maintain accurate gain across a wide frequency range.

Can the NE5532P be used in a single‑supply configuration?

Yes, the NE5532P can operate from a single supply voltage, but designers should ensure that the input and output ranges are compatible with the chosen supply level to avoid clipping.

How does the 8‑pin DIP package benefit prototyping?

The 8‑pin DIP package features machined contact pins that fit securely into standard breadboards, enabling quick insertion, removal, and testing without soldering, which speeds up development cycles.

Is the NE5532P suitable for high‑precision instrumentation?

Absolutely. Its high CMRR, low noise, and stable gain characteristics make it an excellent choice for precision sensor interfaces, low‑level signal conditioning, and instrumentation amplifiers.

What support does Texas Instruments provide for this component?

TI offers extensive resources including datasheets, application notes, reference designs, SPICE models, and direct engineering assistance to help users optimize the NE5532P in their designs.
