TL022 Dual Operational Amplifier by TI – Very Low Power DIP-8 Pack 5

Description

Product Overview

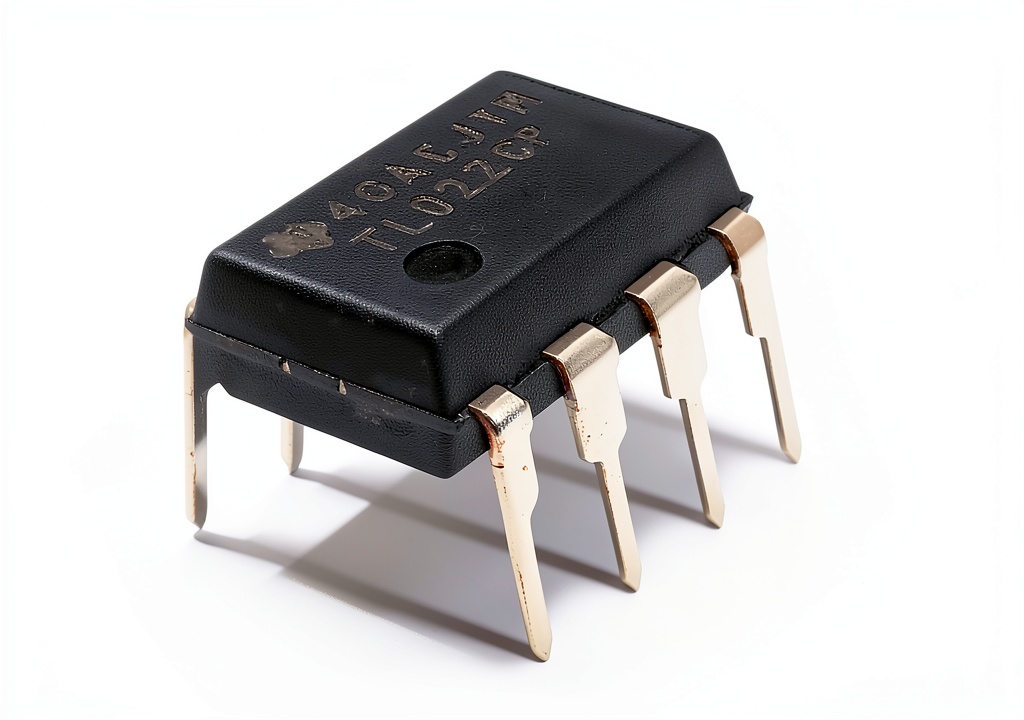

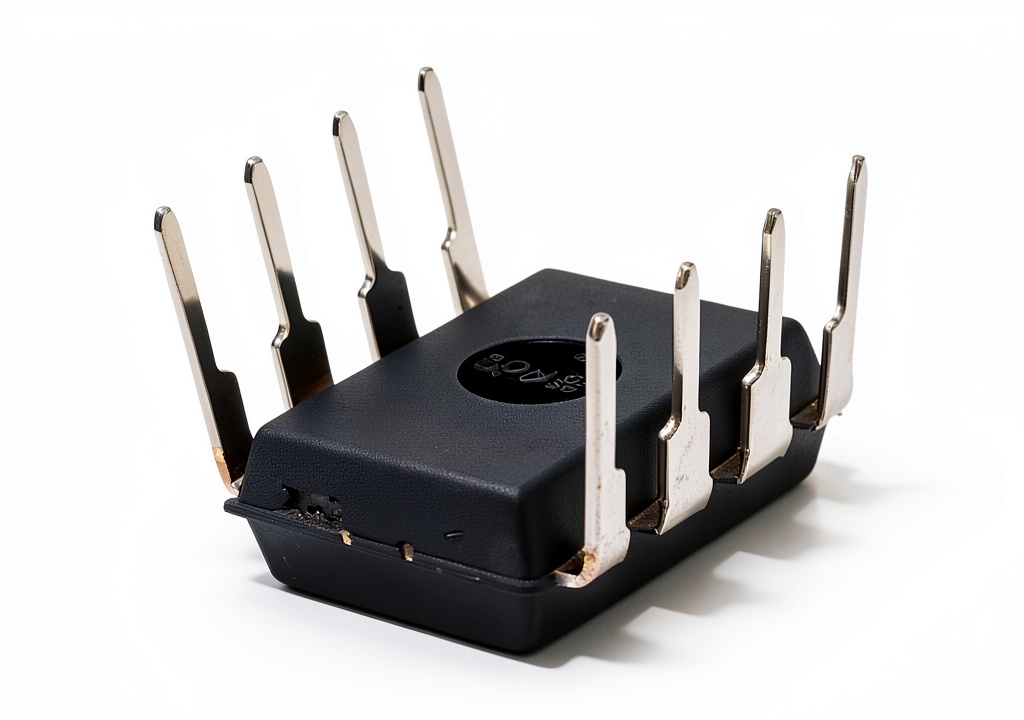

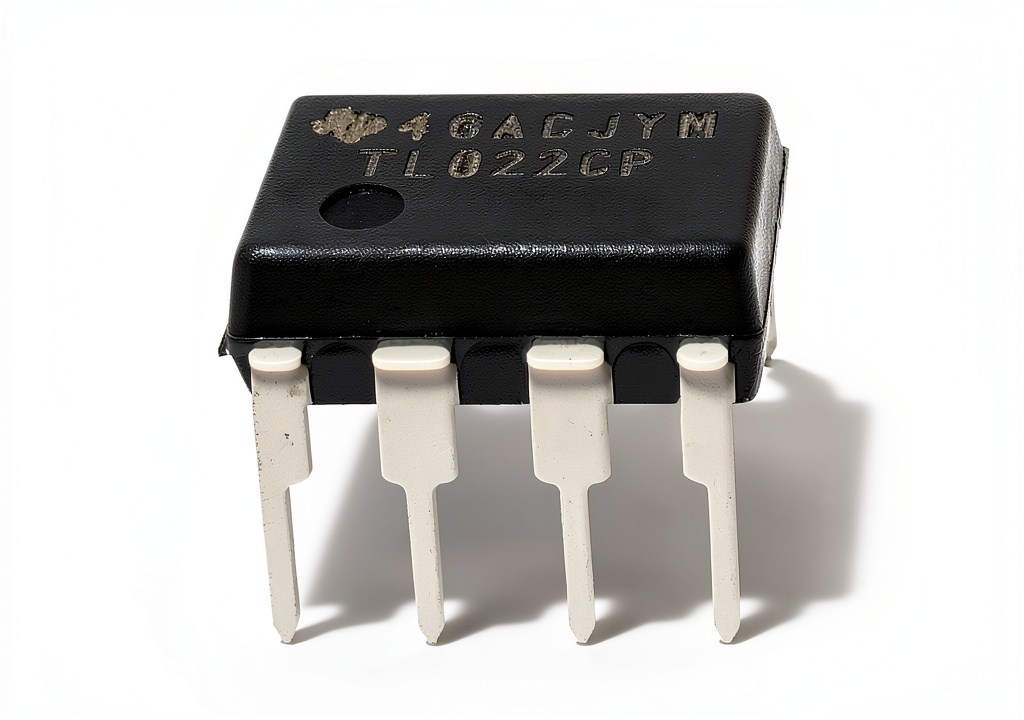

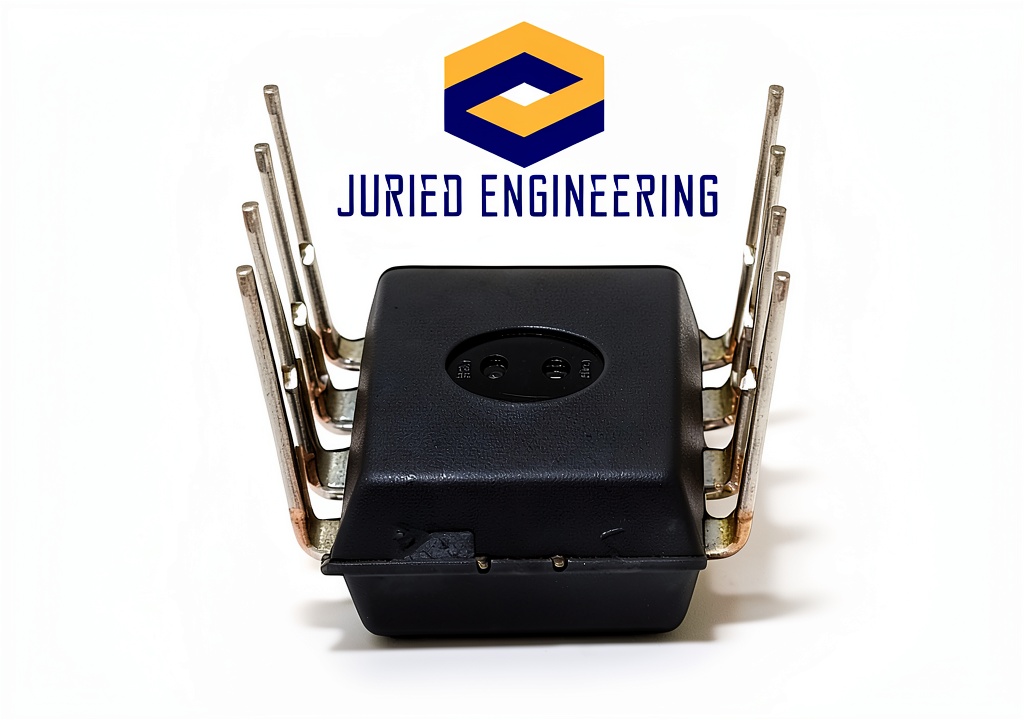

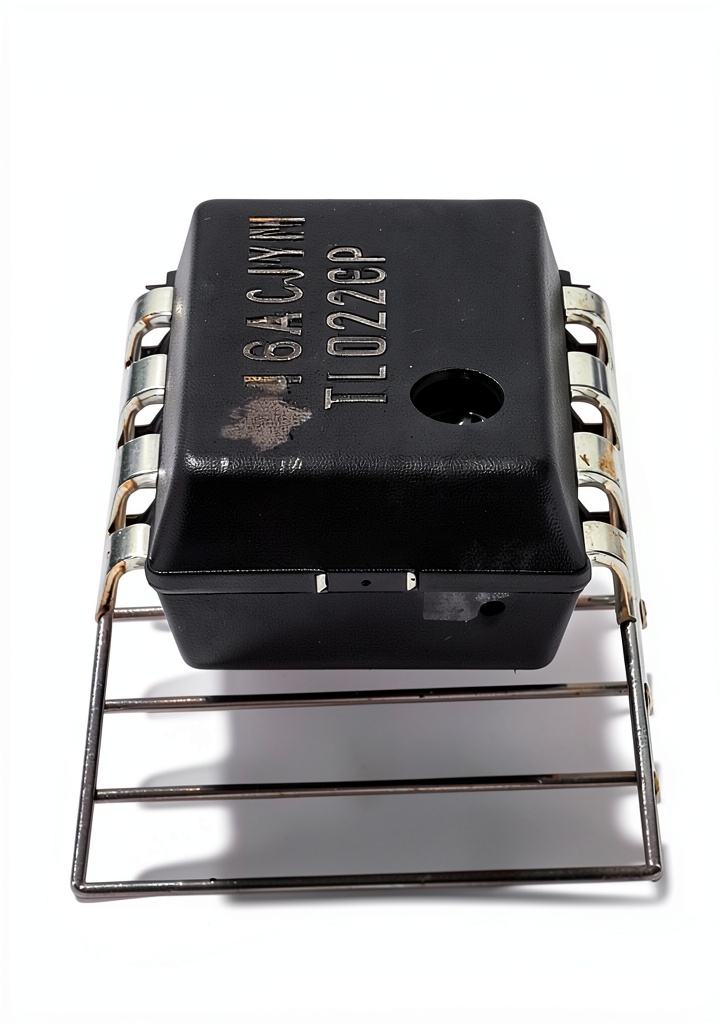

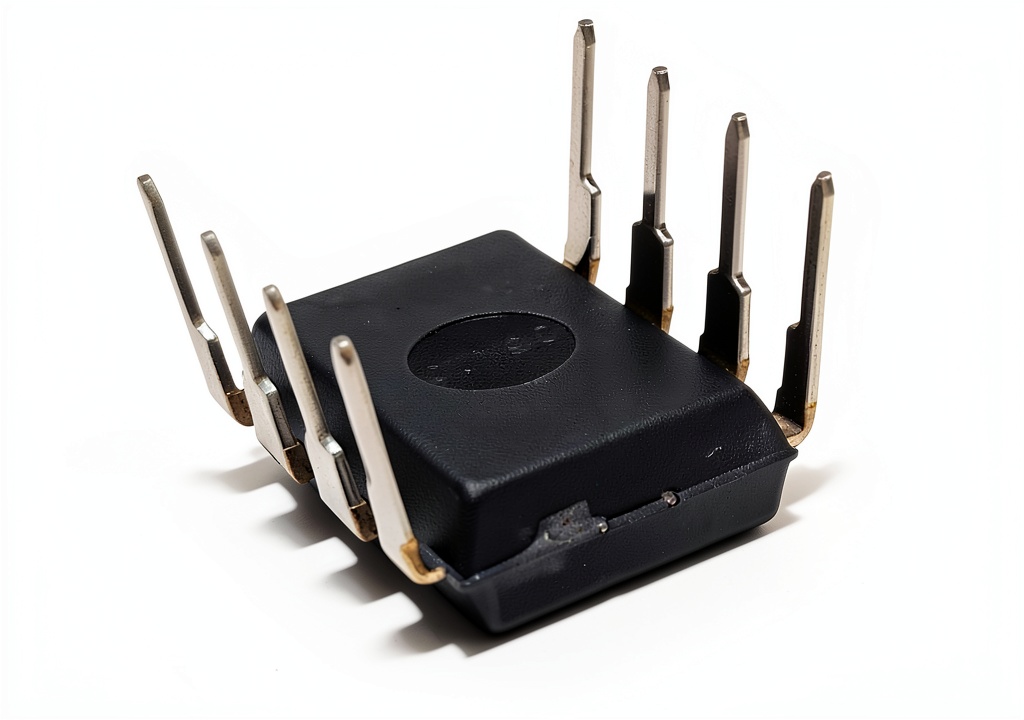

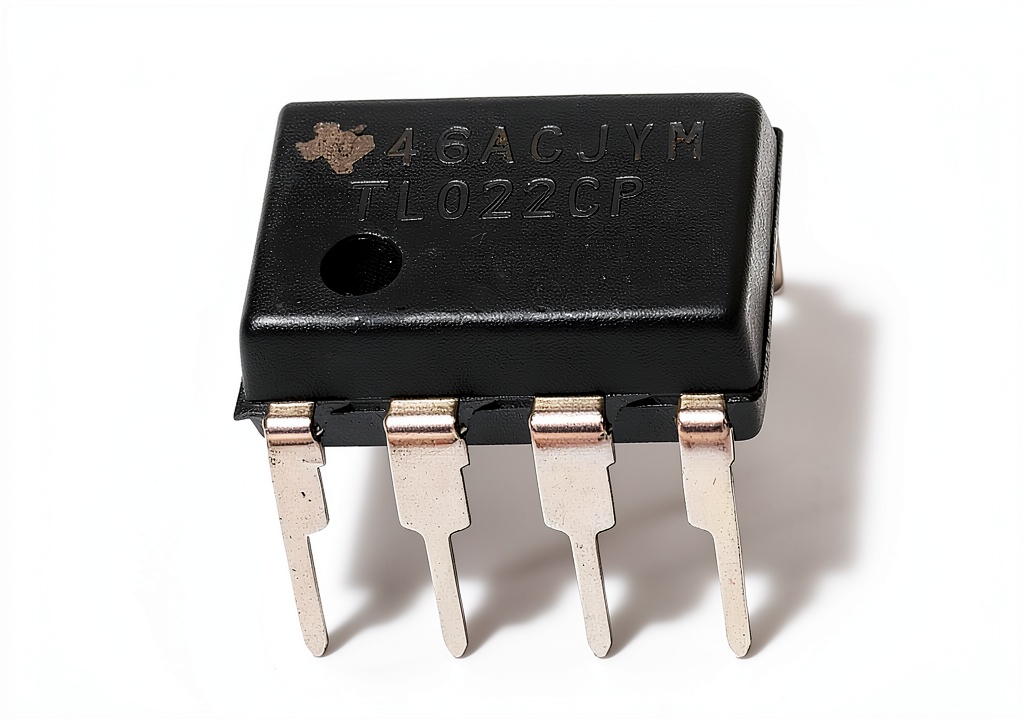

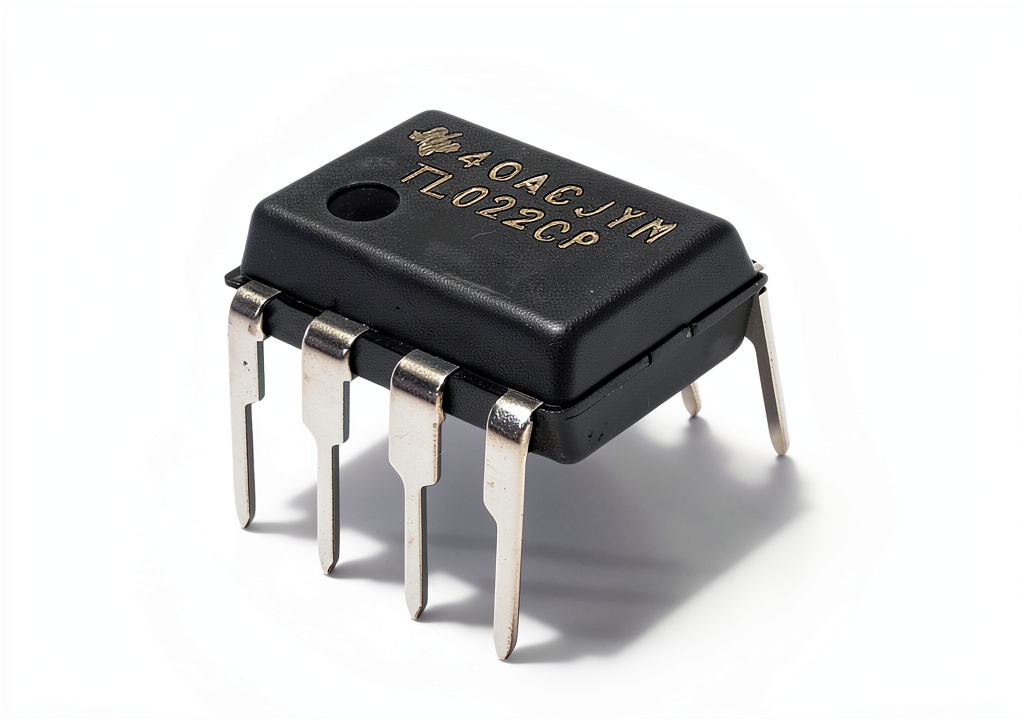

The TL022 dual operational amplifier, part number TL022CP, is a precision analog component manufactured by Texas Instruments, a leader in semiconductor technology. Designed for applications that demand minimal power consumption, the device operates with a typical power dissipation of only 170 µW when powered from ±2 V supplies, making it exceptionally suitable for battery‑operated and energy‑harvesting systems. Its internal frequency compensation provides stable operation across a wide range of gain settings, while the latch‑up‑free architecture guarantees reliable performance even in environments with rapid voltage transients. The IC is housed in a standard DIP‑8 package, which offers breadboard‑friendly pin spacing and ease of insertion into both prototype and production boards. Each pack contains five units, ensuring that designers have sufficient inventory for development, testing, and small‑volume manufacturing runs.

Beyond its low‑power characteristics, the TL022 features low input bias and offset currents, contributing to high accuracy in signal conditioning tasks. The output stage includes short‑circuit protection, preventing damage in the event of accidental load faults. The device’s pinout follows the popular dual op‑amp configuration, allowing designers to implement classic analog functions such as differential amplification, active filtering, and voltage reference buffering with a single footprint. The combination of performance, robustness, and cost‑effectiveness positions the TL022 as a versatile solution for a broad spectrum of industrial, scientific, and consumer‑electronics applications.

Usage

Engineers and hobbyists alike can integrate the TL022 into a variety of circuits where power efficiency is paramount. Typical use cases include portable medical instrumentation, wearable health monitors, remote sensor nodes, and low‑power data acquisition systems. In these scenarios, the amplifier’s ability to function reliably on limited voltage rails enables longer battery life and reduces the need for bulky power management components. The TL022 also excels in precision instrumentation such as strain‑gauge amplifiers, photodiode transimpedance stages, and low‑noise audio preamplifiers, where its low offset voltage and bias currents help preserve signal integrity.

Because the device is supplied in a DIP‑8 package, it is especially convenient for rapid prototyping on breadboards and for educational environments where students can experiment with analog design concepts without requiring surface‑mount soldering. For production environments, the same package can be easily incorporated into automated assembly lines, ensuring consistent placement and reliable solder joints. The TL022’s robust design tolerates temperature variations and supply fluctuations, making it suitable for outdoor deployments and industrial control systems that experience harsh operating conditions.

Why Choose Us

Choosing the TL022 from Texas Instruments means selecting a component backed by decades of industry experience and a global support network. TI’s rigorous quality assurance processes guarantee that each unit meets stringent electrical specifications and reliability standards, providing confidence for mission‑critical applications. Customers benefit from comprehensive documentation, including detailed datasheets, application notes, and reference designs that accelerate development cycles and reduce time‑to‑market.

In addition to the technical merits of the TL022, our distribution service offers fast shipping, transparent pricing, and responsive technical assistance. Whether you are a design engineer needing clarification on performance parameters or a procurement manager seeking bulk order discounts, our team is equipped to address your needs promptly. We also provide a hassle‑free return policy and warranty coverage, ensuring that your investment is protected throughout the product lifecycle.

Key Features

• Ultra‑low power consumption of 170 µW at ±2 V enables extended battery life for portable devices.
• Latch‑up‑free architecture ensures reliable operation under rapid voltage changes and harsh environments.
• Built‑in short‑circuit protection safeguards the amplifier and downstream circuitry from accidental overloads.
• Low input bias and offset currents deliver high accuracy for precision signal conditioning tasks.
• Comprehensive technical support and fast delivery provide confidence and convenience for designers.

FAQ

What supply voltage range can the TL022 operate within?

The TL022 is designed to function with dual supplies as low as ±2 V, delivering typical power dissipation of 170 µW. It can also operate from single‑supply configurations ranging from 4 V to 5 V, providing flexibility for a wide variety of circuit designs.

How does the short‑circuit protection work?

The internal short‑circuit protection circuitry monitors the output current and automatically limits it when a fault condition is detected. This prevents excessive current from damaging the amplifier or connected components, and the device recovers automatically once the fault is cleared, ensuring continued operation without manual intervention.

Is the TL022 suitable for high‑frequency applications?

While the TL022 is optimized for low‑power and precision applications, it features internal frequency compensation that supports stable operation up to several hundred kilohertz. For higher‑frequency requirements, designers may consider alternative TI amplifiers specifically rated for MHz‑range performance.

Can the TL022 be used in single‑supply configurations?

Yes, the TL022 can operate from a single supply voltage of 4 V to 5 V, making it adaptable to designs that prefer a single‑rail power architecture. In such configurations, the input common‑mode range and output swing are adjusted accordingly, as detailed in the datasheet.

What are the advantages of the DIP‑8 package for prototyping?

The DIP‑8 package offers a standard 0.1 inch (2.54 mm) pin spacing, which aligns with common breadboard and prototyping board layouts. This makes it easy to insert the component without soldering, allowing rapid testing and iteration of circuit ideas. Additionally, the package is compatible with automated pick‑and‑place equipment for volume production.
